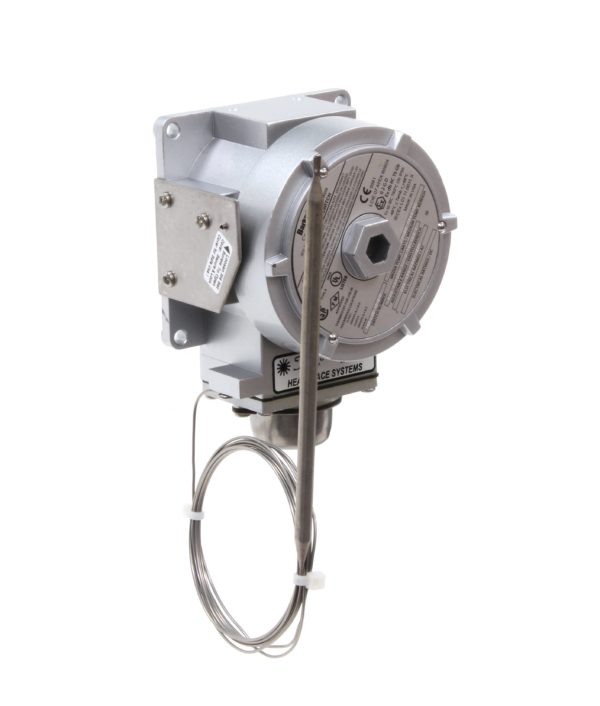

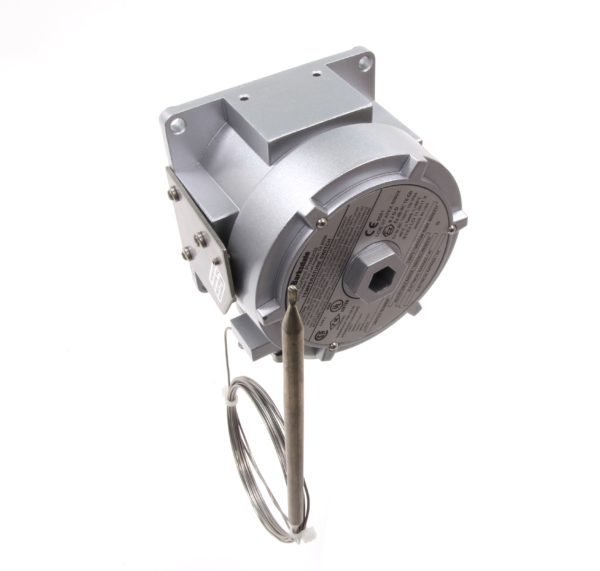

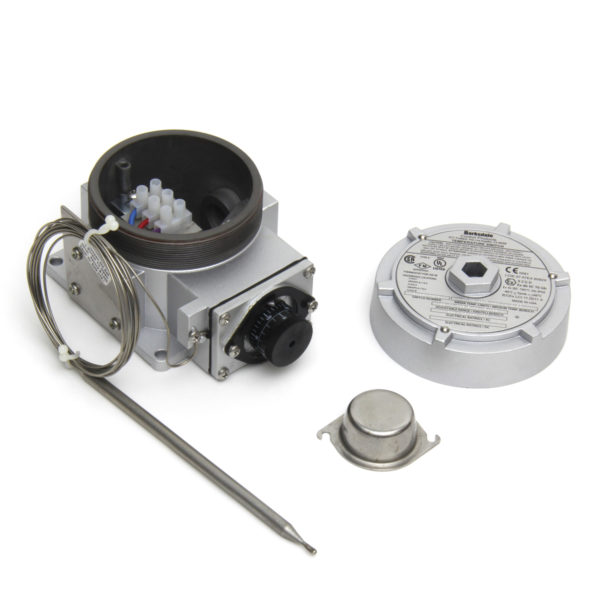

TXR-L25 Line Sensing Thermostat


The TXR-L2S is a remote line sensing thermostat for controlling heat trace systems in hazardous and corrosive environments. It is ideal for process temperature control and freeze protection.

  • Enclosure: NEMA 7, Cast Aluminum
  • Temperature Range 25°F to 325°F
  • Switching: SPDT, 22A, up to 480V
  • Capillary: 10-ft. 316 Stainless Steel

View Data Sheet


  • Pipe Heating
  • – Freeze Protection
  • – Process Temperature Maintenance


  • Tank / Vessel Heating

Technical Resources

Literature: L-133-2

Download PDF


Installation: Consult Factory
